Overview

Every MCP tool in Pylar has a structured configuration that defines how it works. Understanding these components helps you create better tools and troubleshoot issues.

​

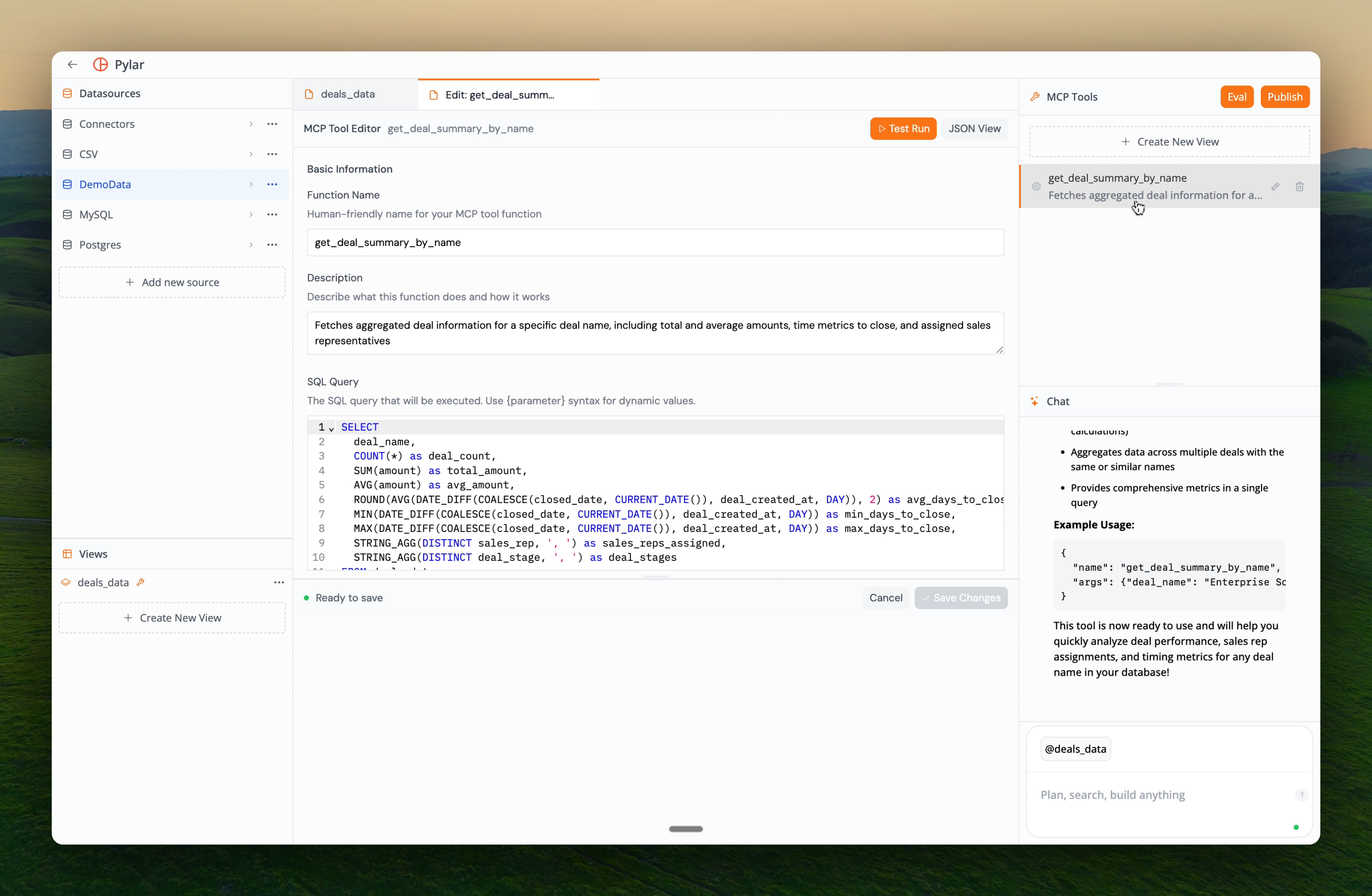

Accessing Tool Details

To view a tool’s structure:
  1. Navigate to your project
  2. Find the tool in the “MCP Tools” section of the right sidebar
  3. Click on the tool to open its details
You’ll see all the tool’s components organized in a clear interface.

​
Tool Components

​
1. Function Name

The function name is how agents identify and call your tool. Location: At the top of the tool view Characteristics:
  • Must be unique within your project
  • Should be descriptive and clear
  • Follows naming conventions (snake_case is common)
  • Can be renamed at any time
Example: fetch_engagement_scores_by_event_type
Choose function names that clearly indicate what the tool does. Agents will use this name to invoke the tool.

​
2. Description

The description tells AI agents what your tool does and when to use it. Location: Below the function name Characteristics:
  • Written in natural language
  • Should be clear and concise
  • Helps agents decide when to use the tool
  • Visible to agents when they browse available tools
Example: “Fetches engagement scores and related data filtered by event type”
The description is crucial for agents. Make it specific enough that agents understand exactly what the tool does and when to use it.

​
3. SQL Query

The SQL query defines how the tool retrieves data from your view. Location: In the SQL Query section Characteristics:
  • Standard SQL syntax
  • Can include parameter placeholders like {parameter_name}
  • Executes against your data view
  • Can be edited and refined
Example:
SELECT engagement_score
FROM table0
WHERE event_type LIKE '%{event_type}%'
ORDER BY engagement_score DESC

​
Parameter Placeholders

Use {parameter_name} in your SQL query where you want agent-provided values injected:
-- Single parameter
WHERE event_type = '{event_type}'

-- Multiple parameters
WHERE date >= '{start_date}' AND date <= '{end_date}'

-- In LIKE patterns
WHERE name LIKE '%{search_term}%'
Parameter names in SQL must match parameter names exactly. Case-sensitive and spelling must be identical.

​
4. Parameters

Parameters define what inputs your tool accepts from agents. Location: In the Parameters section Structure:
  • Type: The data type (string, number, boolean, etc.)
  • Required/Optional: Whether the parameter must be provided
  • Description: What the parameter represents
  • Properties: Additional constraints or validations
Example Parameter Configuration:
{
  "event_type": {
    "type": "string",
    "description": "Event type to filter by (supports partial matching)",
    "required": true
  }
}

​
Parameter Types

Common parameter types:
  • string: Text values
  • number: Numeric values (integers or decimals)
  • boolean: True/false values
  • array: Lists of values
  • object: Complex nested structures

​
5. Tool Call Arguments

Tool call arguments are test values used to verify your tool works. Location: In the Tool Call Arguments section (right side) Purpose:
  • Sample inputs for testing
  • Can be modified during testing
  • Help validate tool behavior
  • Don’t affect production tool calls
Example:
{
  "event_type": "login"
}
Use realistic test values that represent how agents will actually use your tool. This helps catch issues early.

​

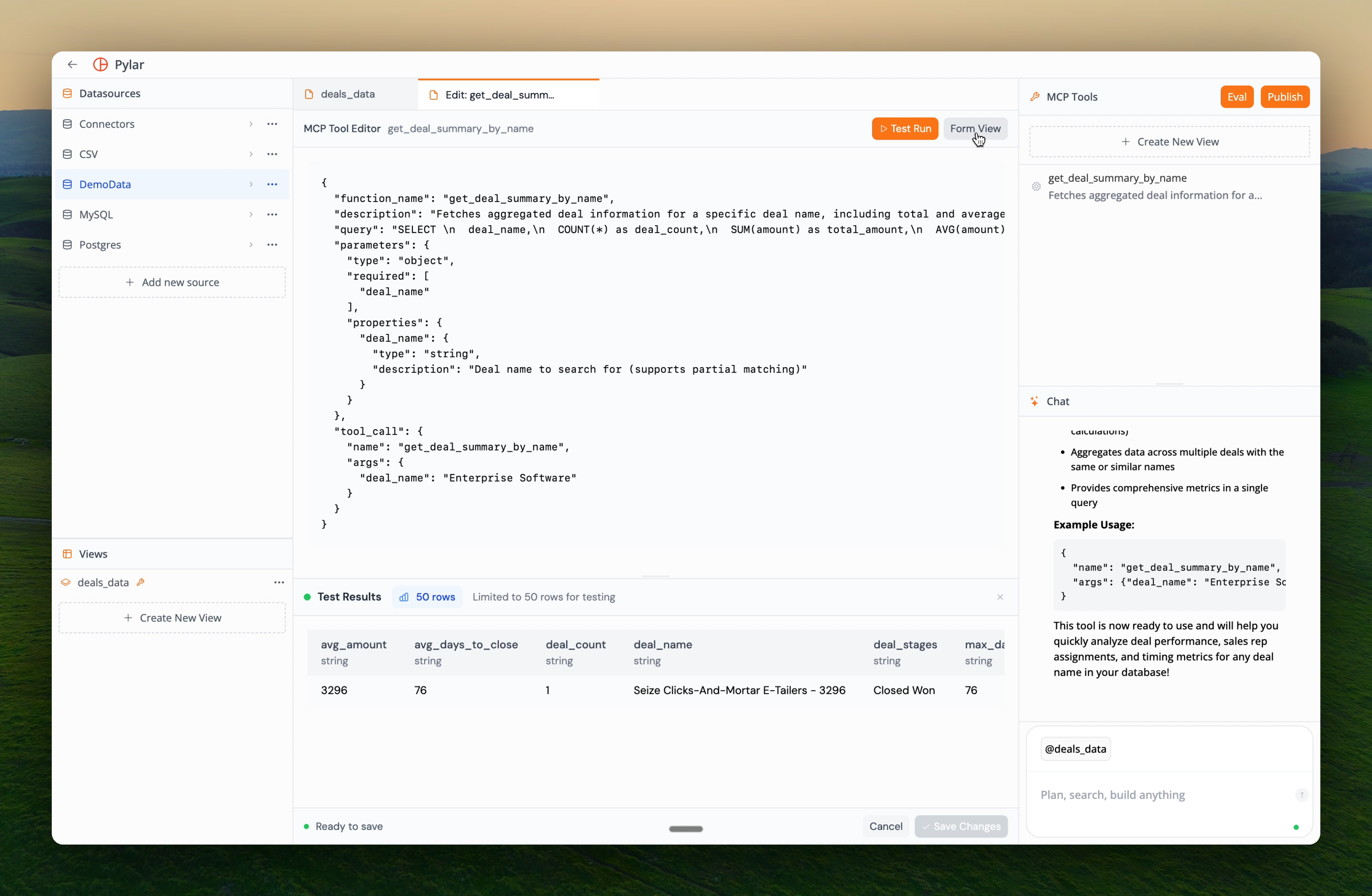

JSON Structure

You can view the complete tool structure as JSON by clicking “JSON view”.

​
Complete JSON Example

{
  "function_name": "fetch_engagement_scores_by_event_type",
  "description": "Fetches engagement scores and related data filtered by event type",
  "query": "SELECT engagement_score FROM table0 WHERE event_type LIKE '%{event_type}%' \nORDER BY engagement_score DESC",
  "parameters": {
    "type": "object",
    "required": [
      "event_type"
    ],
    "properties": {
      "event_type": {
        "type": "string",
        "description": "Event type to filter by (supports partial matching)"
      }
    }
  },
  "tool_call": {
    "name": "fetch_engagement_scores_by_event_type",
    "args": {
      "event_type": "login"
    }
  }
}

​
JSON Structure Breakdown

  • function_name: Tool identifier
  • description: What the tool does
  • query: SQL query with parameter placeholders
  • parameters: Parameter definitions (type, required, properties)
  • tool_call: Test arguments for validation
The JSON view is useful for understanding the complete tool structure and for debugging. It shows exactly how the tool is configured.

​
How Components Work Together

​
The Flow

  1. Agent Calls Tool: Uses the function name
  2. Agent Provides Parameters: Sends values for required/optional parameters
  3. Query Execution: Parameters replace placeholders in SQL
  4. Results Returned: Query results sent back to agent

​
Example Flow

Agent Request:
{
  "function": "fetch_engagement_scores_by_event_type",
  "args": {
    "event_type": "purchase"
  }
}
Query Transformation:
-- Original query with placeholder
SELECT engagement_score
FROM table0
WHERE event_type LIKE '%{event_type}%'

-- After parameter injection
SELECT engagement_score
FROM table0
WHERE event_type LIKE '%purchase%'
Result: Returns all engagement scores for events containing “purchase”

​
Best Practices

​
Function Names

  • ✅ Use descriptive names: get_customer_revenue_by_date_range
  • ✅ Follow naming conventions: snake_case
  • ✅ Be specific: fetch_engagement_scores_by_event_type not get_data
  • ❌ Avoid abbreviations unless widely understood

​
Descriptions

  • ✅ Be clear and specific
  • ✅ Mention what data is returned
  • ✅ Note any important behaviors (like partial matching)
  • ❌ Avoid vague descriptions like “gets data”

​
SQL Queries

  • ✅ Use parameter placeholders for dynamic values
  • ✅ Test queries manually before creating tools
  • ✅ Include ORDER BY for predictable results
  • ✅ Consider performance (use LIMIT when appropriate)

​
Parameters

  • ✅ Make parameters required when they’re essential
  • ✅ Provide clear descriptions
  • ✅ Use appropriate types (string, number, etc.)
  • ✅ Consider adding validation constraints

​
Common Patterns

​
Pattern 1: Single Filter

SELECT *
FROM view_name
WHERE column = '{filter_value}'

​
Pattern 2: Date Range

SELECT *
FROM view_name
WHERE date >= '{start_date}'
  AND date <= '{end_date}'
ORDER BY date DESC

​
Pattern 3: Search with LIKE

SELECT *
FROM view_name
WHERE name LIKE '%{search_term}%'
ORDER BY relevance DESC
LIMIT 100

​
Pattern 4: Multiple Filters

SELECT *
FROM view_name
WHERE category = '{category}'
  AND status = '{status}'
  AND date >= '{start_date}'
ORDER BY date DESC

​
Next Steps

Now that you understand tool structure:

Edit Your Tool

Learn how to refine and customize your tools
