Connecting via SSH

​

Overview

​

When to Use SSH Connections

• ✅ You want maximum security for sensitive databases
• ✅ Your database is in a private VPC or network
• ✅ You need additional access control layers
• ✅ Compliance requirements demand enhanced security
• ✅ You want to use a dedicated user account approach

​

How SSH Connections Work

​

Architecture

Pylar → SSH Tunnel (Bastion VM) → Database Auth Proxy → Your Database

1. Pylar connects to your Bastion VM via SSH
2. Bastion VM runs the Database Auth Proxy
3. Auth Proxy connects to your database
4. All traffic is encrypted through the SSH tunnel

​

Benefits

• ✅ Enhanced Security: All traffic encrypted through SSH
• ✅ Network Isolation: Database stays in private network
• ✅ Access Control: Additional layer of authentication
• ✅ Audit Trail: Monitor SSH connections separately

​

Prerequisites

• ✅ Access to create a Virtual Machine (VM)
• ✅ Ability to install software on the VM
• ✅ Database in private VPC or network
• ✅ Admin access to configure network settings
• ✅ Understanding of SSH key management

​

Step-by-Step Setup

​

Step 1: Create a Bastion VM

1. Create VM in GCP (or your cloud provider):
   • Choose appropriate VM size
   • Place VM in same VPC as database (or network-connected)
   • Configure VM with public IP or VPN access
   • Install operating system (Linux recommended)
2. Configure Network:
   • Open port 22 (SSH) for Pylar’s IP (34.122.205.142)
   • Ensure VM can reach your database
   • Configure firewall rules appropriately

​

Step 2: Install Database Auth Proxy

1. Download and Install:
   Copy

   # Example for AlloyDB
   wget https://alloydb-auth-proxy-release.s3.amazonaws.com/alloydb-auth-proxy
   chmod +x alloydb-auth-proxy


2. Configure Proxy:
   • Set up proxy to connect to your database
   • Configure proxy to listen on localhost
   • Test proxy connection to database

​

Step 3: Generate SSH Keypair

1. In Pylar, go to Connections → SSH Configuration
2. Pylar generates a public/private keypair
3. Copy the public key from your integrations page
4. Save it for use in the next step

​

Step 4: Set Up Service Account and User on Bastion

1. Create Service Account in GCP:
   • Create a service account for Pylar
   • Grant necessary permissions
   • Note the service account details
2. Create User on Bastion:
   • Create a new user on the bastion VM
   • Link user to the service account
   • Log in as this user
3. Add SSH Public Key:
   • Add the public key you copied from Pylar
   • Add it to ~/.ssh/authorized_keys:
     Copy

     echo "YOUR_PUBLIC_KEY_HERE" >> ~/.ssh/authorized_keys
     chmod 600 ~/.ssh/authorized_keys


   • Verify SSH access works

​

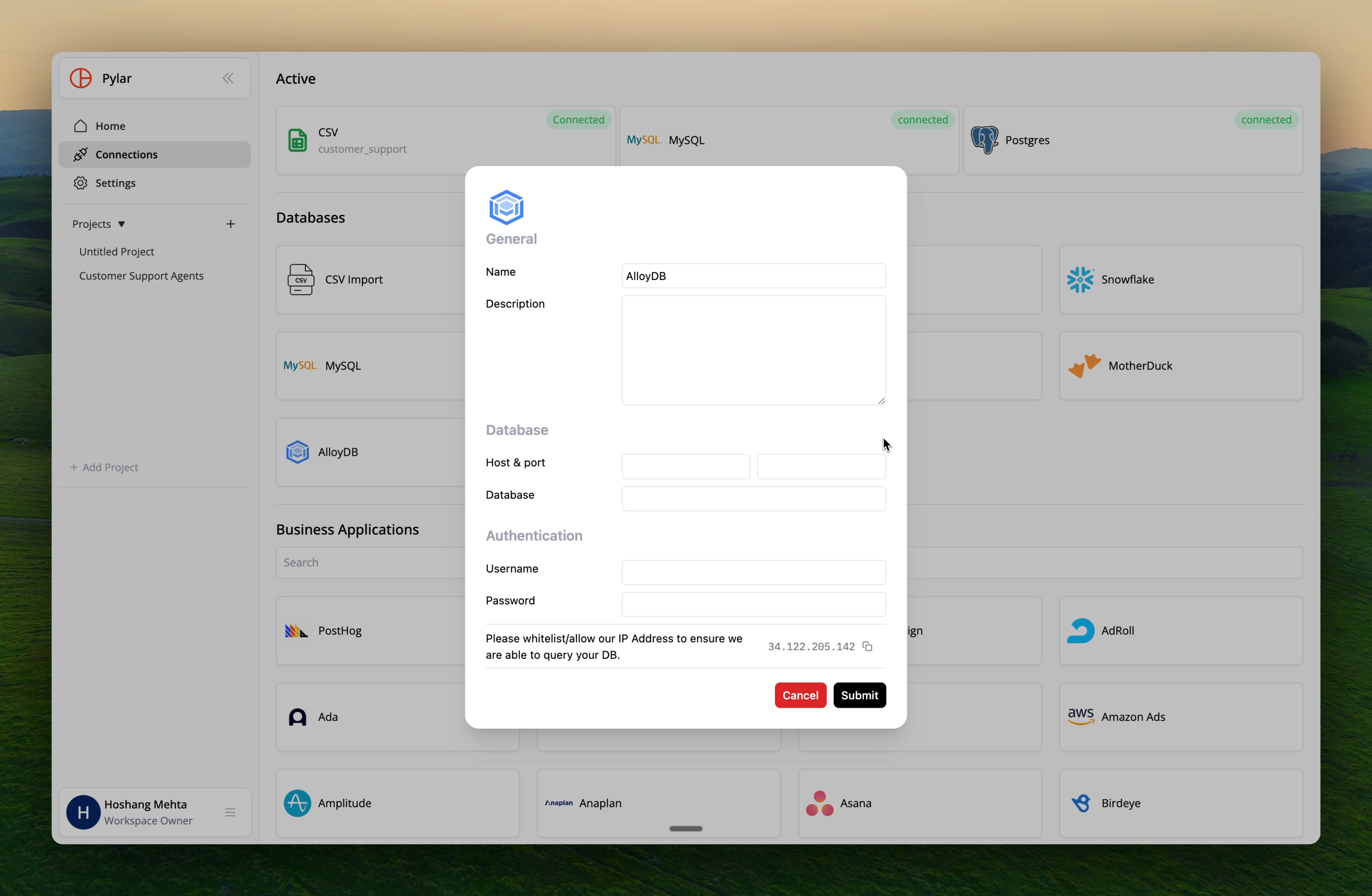

Step 5: Configure Database in Pylar

​

SSH Section

1. Host: Enter the hostname or IP of your bastion VM
2. Port: SSH port (usually 22)
3. Username: The user name under which you added the SSH key

​

Database Section

1. Host: Enter 127.0.0.1 (localhost on the bastion)
2. Port: Port of the AlloyDB Auth Proxy (usually 5432)
3. Database Name: Name of your AlloyDB database
4. Username: Username for the AlloyDB user you created for Pylar
5. Password: Password for the AlloyDB user

​

Security Considerations

​

SSH Key Management

• ✅ Secure Storage: Keys are stored securely in Pylar
• ✅ Key Rotation: Rotate SSH keys periodically
• ✅ Access Control: Limit who can access SSH keys
• ✅ Monitoring: Monitor SSH access logs

​

Bastion VM Security

• ✅ Hardening: Apply security hardening to the VM
• ✅ Updates: Keep VM and software updated
• ✅ Monitoring: Monitor VM access and activity
• ✅ Backup: Have backup/recovery procedures

​

Network Security

• ✅ Firewall Rules: Restrict SSH access to Pylar IP only
• ✅ VPN Option: Consider VPN instead of public IP
• ✅ Private Networks: Keep database in private network
• ✅ Access Logs: Monitor all network access

​

Benefits of SSH Connections

​

Enhanced Security

• Encrypted Tunnel: All traffic encrypted through SSH
• Network Isolation: Database never directly exposed
• Additional Authentication: SSH key + database credentials
• Audit Trail: Separate logs for SSH and database access

​

Compliance

• Regulatory Requirements: Meets strict compliance needs
• Audit Trails: Complete logging of all access
• Access Controls: Multiple layers of security
• Data Privacy: Maximum protection for sensitive data

​

Troubleshooting

​

Issue: SSH connection fails

• Verify SSH public key is in authorized_keys
• Check bastion VM is accessible
• Verify port 22 is open
• Check SSH service is running on bastion

​

Issue: Database connection through proxy fails

• Verify proxy is running on bastion
• Check proxy can reach database
• Verify database credentials
• Review proxy logs

​

Issue: Connection timeout

• Check network connectivity to bastion
• Verify firewall rules
• Review SSH connection logs
• Test SSH connection manually

​

Best Practices

​

Bastion VM

• ✅ Use minimal VM size needed
• ✅ Apply security patches regularly
• ✅ Monitor VM resource usage
• ✅ Have backup/recovery plan

​

SSH Keys

• ✅ Rotate keys periodically
• ✅ Use strong key types (RSA 4096 or Ed25519)
• ✅ Monitor key usage
• ✅ Revoke keys when no longer needed

​

Database Proxy

• ✅ Keep proxy software updated
• ✅ Monitor proxy logs
• ✅ Configure proxy for performance
• ✅ Test proxy connectivity regularly

​

Alternative: Dedicated User Account

1. Create dedicated database user for Pylar
2. Grant limited permissions (read-only if possible)
3. Use audit logging to monitor access
4. Establish limited database views accessible by Pylar user

​

Next Steps

• Connection Security - General security practices
• Managing Connections - Manage your SSH connections
• Creating Data Views - Use your secure connections
